The automated smoke meter GSM series is easily able to measure the filter blackening level in engine exhaust smoke. Some of the models are also line-upped to correspond to low smoke emission level by increasing the sample gas volume with variable sampling system and they automatically take sample gas and feed a filter paper to measure filter blackening level. The external control options are equipped to correspond to existing engine control system.
Products
Line-up
|
Compliant with JIS* and ISO Variable sample volume(300-10,000cm3)/for engine research * Japanese Industrial Standards
|
 |
GSM-22A
|
|
GSM-22
|
||
|
Compliant with JIS Fixed Sampling Volume/Basic model |
 |
GSM-3TDLA
|
|
GSM-3TDA
|
||
|
Options, Consumables |
 |
|
Features
Automated measuring sequenceAn efficient measurement is automatically done without personal errors by just pressing a button in order for sampling exhaust gas, measuring a result in reflectance and purging sample lines with air. It also contribute to the labor-saving to replace a filter paper which is able to measure continuously 660 times per filter paper roll. |
|
Excellent repeatability and high sensitivityThe model GSM series(except GSM-3TDA) employ the temperature compensated detector with low drift to enhance the repeatability in low smoke conditions (equiv:low soot density). The GSM-22 series employ the variable sampling system to increase the sample gas volume and the sensitivity in extremely low smoke conditions. |
|
Correspond to external controlIt is able to incorporate into existing automated laboratory equipment since the model GSM series (except GSM-3TDA) correspond to external control such as RS-232C or Ethernet. |
|
Specifications

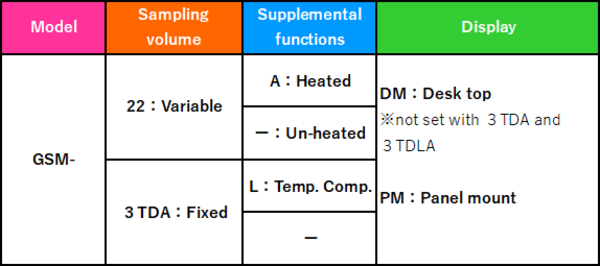

Line-up models
Relevant products
Applications
Quality controlFor vehicle inspection or quality control in car production line, it is easy to measure filter blackening level by inserting a probe into tailpipe.
|
Engine research and developmentFor engine research or development of diesel or turbo-charged GDI engines, the filter blackening level in various conditions are obtained by installing a probe into any exhaust positions.
|

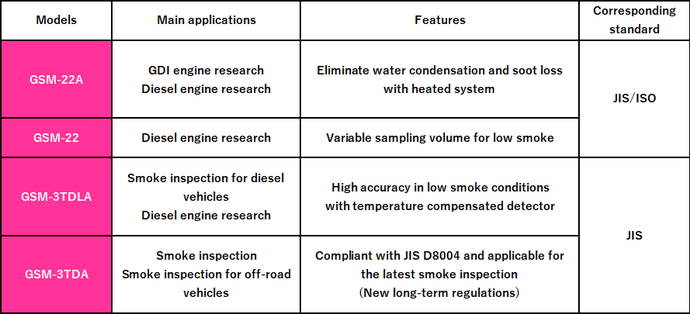

Model selection guide
FAQ
Can the model GSM series measure the filter blackening level with containing a lot of moisture in exhaust gas?
It is recommended to use the heated model GSM-22A in those case to avoid to contaminate in sample lines or to break filter paper. The model GSM-22 is not a heated type.
External view
|
GSM-22,-22A
|
GSM-3TDA, -3TDLA
|
|

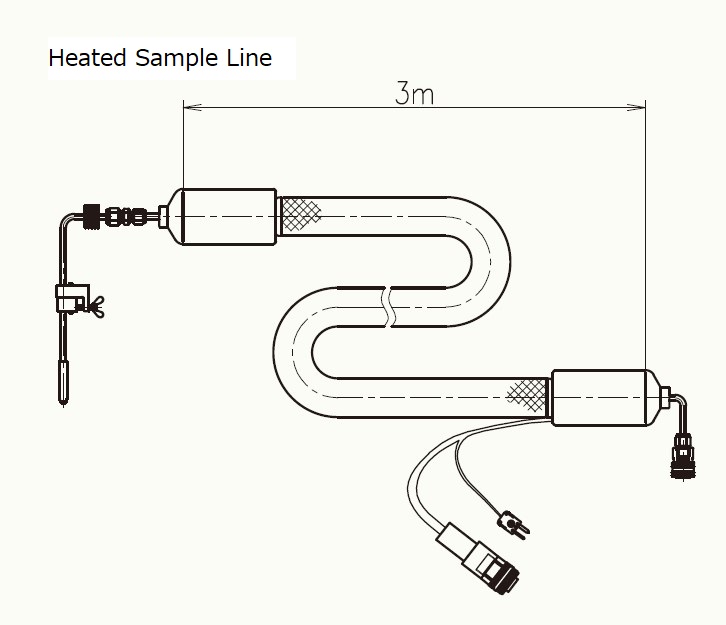

Accesories
|
|
Priciple

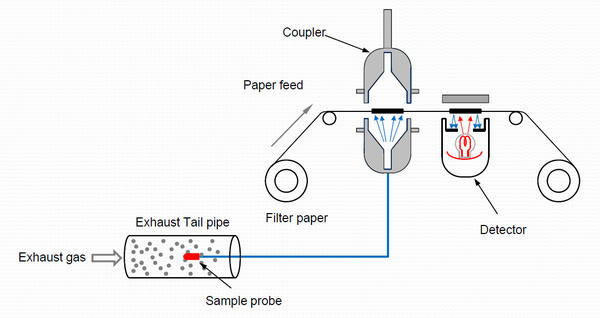

Principle
Measuring method1. Sample the known amount of exhaust gas through filter paper to contaminate the filter by soot. |
|

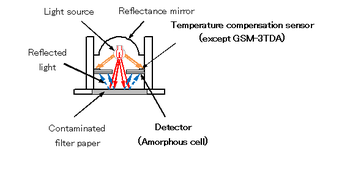

Detector
|

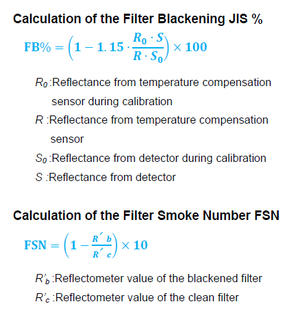

Calculation
|
The prices are subject to change with the specifications then please don't hesitate to contact us if you are interested to know the price.
